ROOT SHREDDER
ROOT SHREDDER
THE ULTIMATE PRE-PROCESSING UNIT.

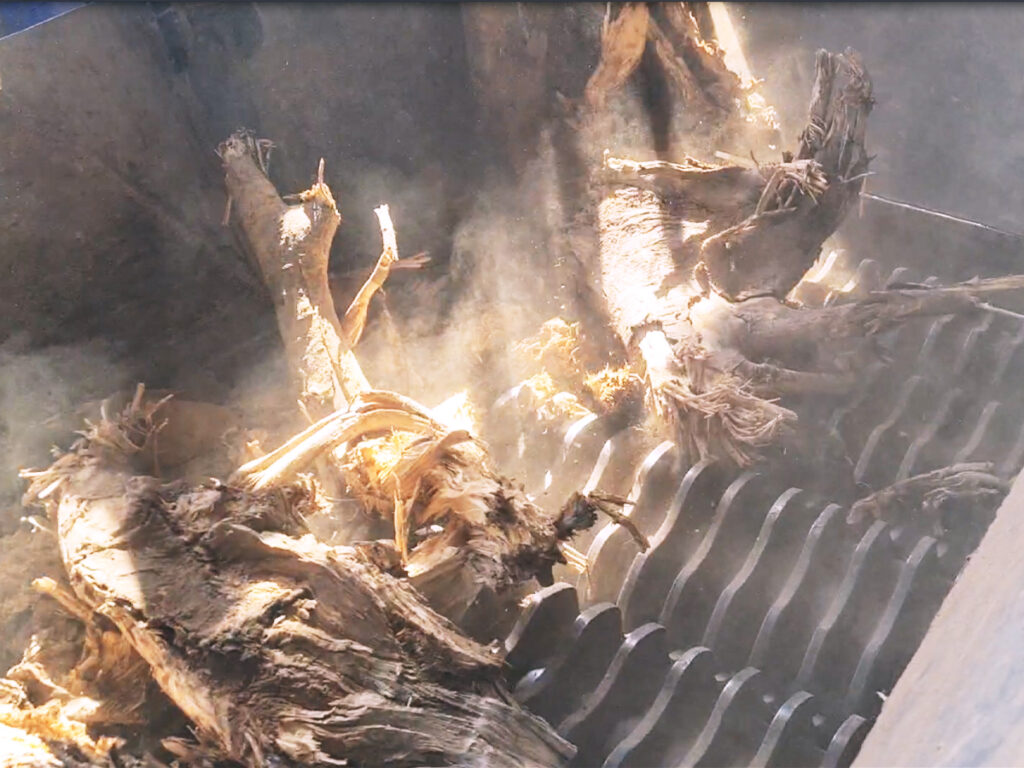

The ultimate pre-processing unit. Designed to crush contaminated roots and stumps with high torque, preparing tough materials before the main wood chipper line.
Compatible Raw Materials
Tree roots, palm trunks, coconut trunks, and oversized logs exceeding 20 inches in diameter.
Operational Process
- Raw materials are top-fed directly into the machine’s hopper.

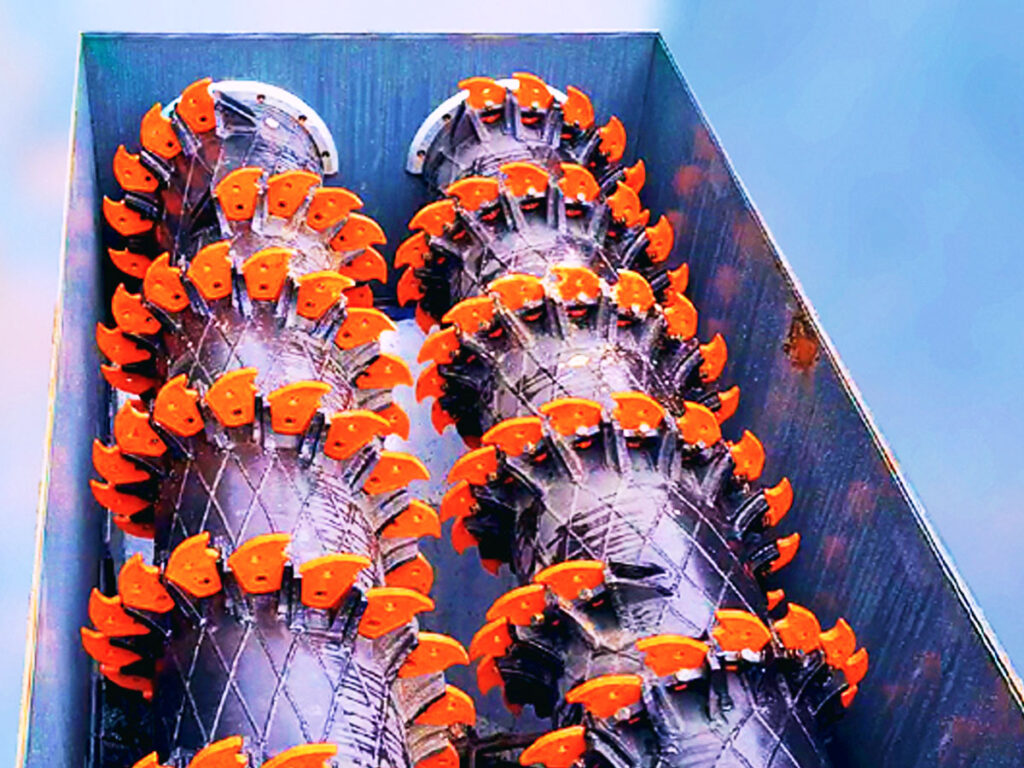

- The heavy-duty mechanism shreds the materials and discharges the processed output directly underneath.

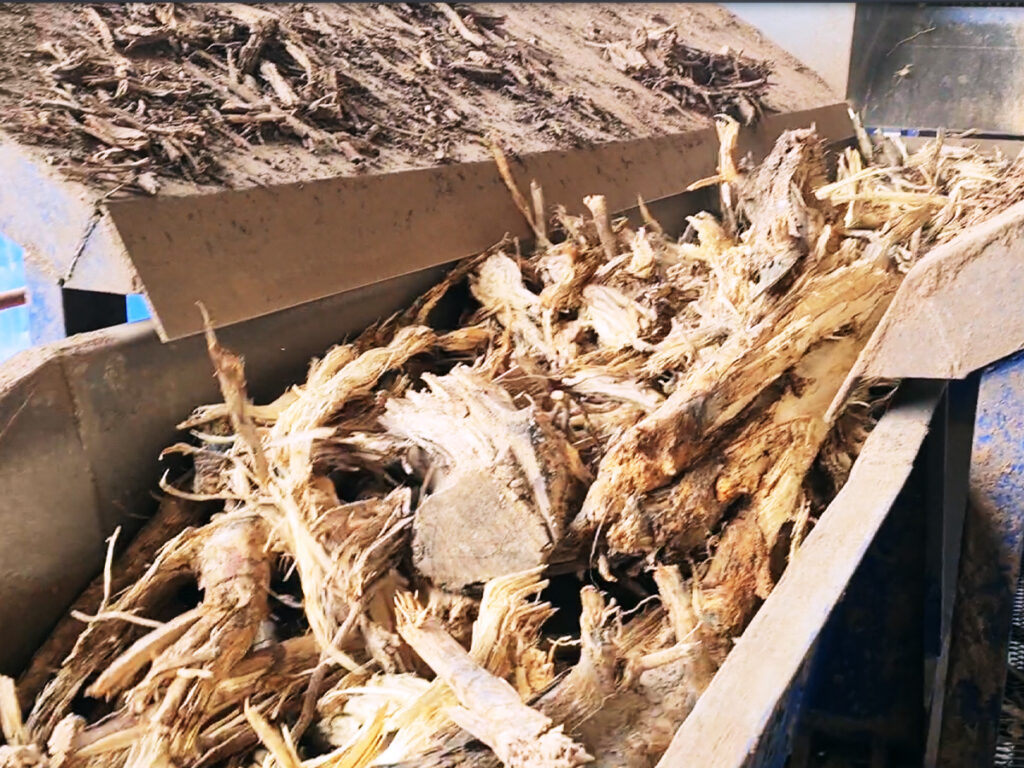

- A discharge conveyor then transports the shredded materials to the next processing stage.
Key Engineering Features
- Customizable Production Capacity: Throughput rates can be tailored to align precisely with specific raw material types and desired target volumes.
- Tailored Machine Configuration: The system’s design can be fully customized to meet specific operational demands, including enhanced safety features, precise output sizing, and specific adaptations for various industrial applications.
ROOT SHREDDER SERIES
CR750
Dim.: 2500×9205×2100 mm.
10-20
TONS/HOUR
-
2400x3000x600 mm. Max Feed Size
-
220 HP (6pole) ×2 Motors
-
1:28 Reduction Ratio
ROOT SHREDDING & SCREENING SYSTEM
Turn waste into fuel. The Stationary Log Loader feeds tough roots into the Root Shredder. A specialized Screen Conveyor then separates rocks and soil from the biomass, ensuring boiler-ready fuel.
1. SOIL & ROCK SCREEN CONVEYOR
SOIL & ROCK SCREEN CONVEYOR
Specialized separation technology. Removes heavy contaminants like rocks, sand, and soil from shredded roots to protect your boiler systems.
2. INDUSTRIAL CONVEYOR SYSTEM
INDUSTRIAL CONVEYOR SYSTEM
The artery of your production. Automated belt systems designed to transport raw materials and finished chips seamlessly from start to finish.
