DISC CHIPPER
DISC CHIPPER
The standard for biomass power plants. This high-capacity wood chipper processes massive log volumes into uniform fuel chips with continuous feeding efficiency
Rice straw, Empty Fruit Bunches (EFB), coconut fronds, coconut shells, palm fronds, cassava roots, corn cobs, corn stalks, mixed wood, wood slabs, shredded roots, and general industrial wood waste.
Raw materials are transported via a conveyor belt system and fed into either the top or front hopper of the machine.
The machine efficiently chips the materials and discharges the processed output directly underneath.
A discharge conveyor then transports the chipped materials to the next processing stage.
Customizable Capacity: Production rates can be tailored to align perfectly with specific raw material types and target output volumes.
Adjustable Output Size: Chip dimensions can be strictly controlled—typically ranging from 5 mm to 50 mm—or customized to meet the exact standards of biomass power plants and pulp mills.
Tailored Design: Machine configurations can be adapted to specific operational demands, including enhanced safety measures, high-precision sizing, and specific industrial applications.
DRUM CHIPPER SERIES
DC1200
Dim.: 1100 ×2650 ×1625 mm-
Ø6" Max Feed Size
-
150 HP (115 kW) Motor
-
6 Chipper Knives
DC1500
Dim.: 1200 ×3100 ×1605 mm.-
Ø10" Max Feed Size
-
180 HP (140 kW) Motor
-
6 Chipper Knives
DC1800
Dim.: 21550 ×3500 ×2100 mm.-
Ø12" Max Feed Size
-
270 HP (200 kW) Motor
-
8 Chipper Knives
DC2200
Dim.: 21650 ×4000 ×2545 mm.-
Ø12" Max Feed Size
-
430 HP (320 kW) Motor
-
20 Chipper Knives
DEBARKING & DISC CHIPPING SYSTEM
Engineered for purity. Logs are cleaned by the Debarker before entering the Disc Chipper. The process ensures zero waste with Vibration Screens and Re-chippers, delivering perfectly clean chips via our Conveyor System.
1. STATIONARY LOG LOADER
STATIONARY LOG LOADER

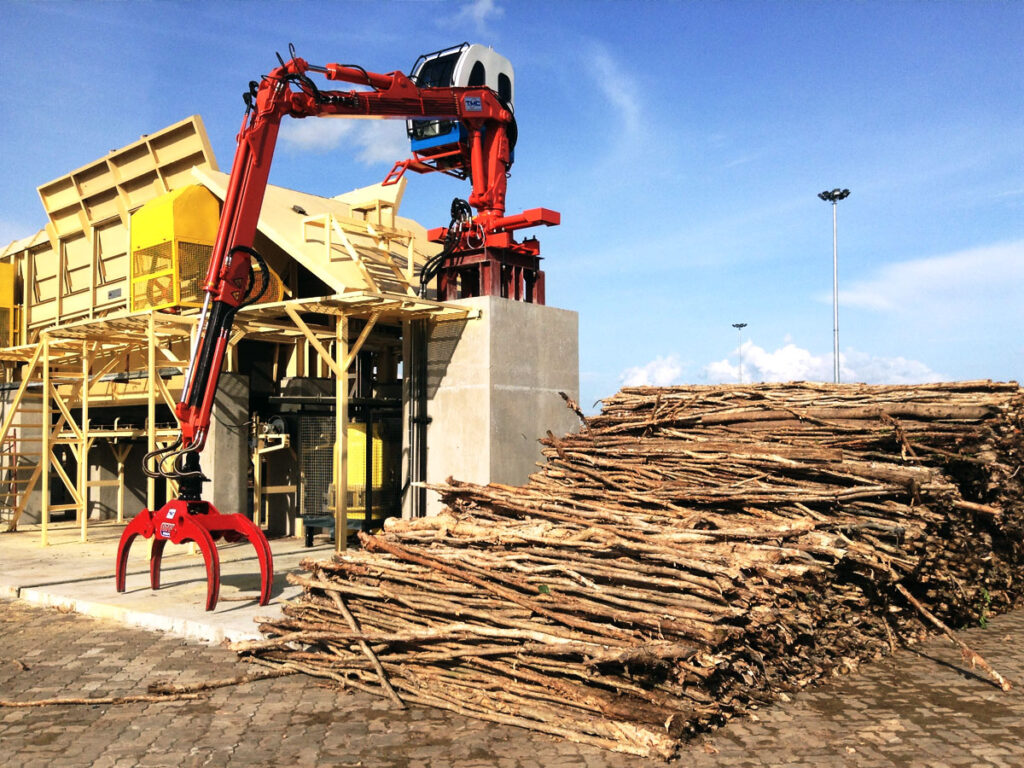

High-performance hydraulic crane designed for precise log handling. Reduces manual labor and ensures continuous, heavy-duty feeding into the chipping line.
2. LOG DEBARKER
LOG DEBARKER
Essential for clean chips. This heavy-duty debarker efficiently removes bark to protect downstream blades and ensure high-purity output.
3. INDUSTRIAL CONVEYOR SYSTEM
INDUSTRIAL CONVEYOR SYSTEM
The artery of your production. Automated belt systems designed to transport raw materials and finished chips seamlessly from start to finish.
