DRUM CHIPPER
DRUM CHIPPER

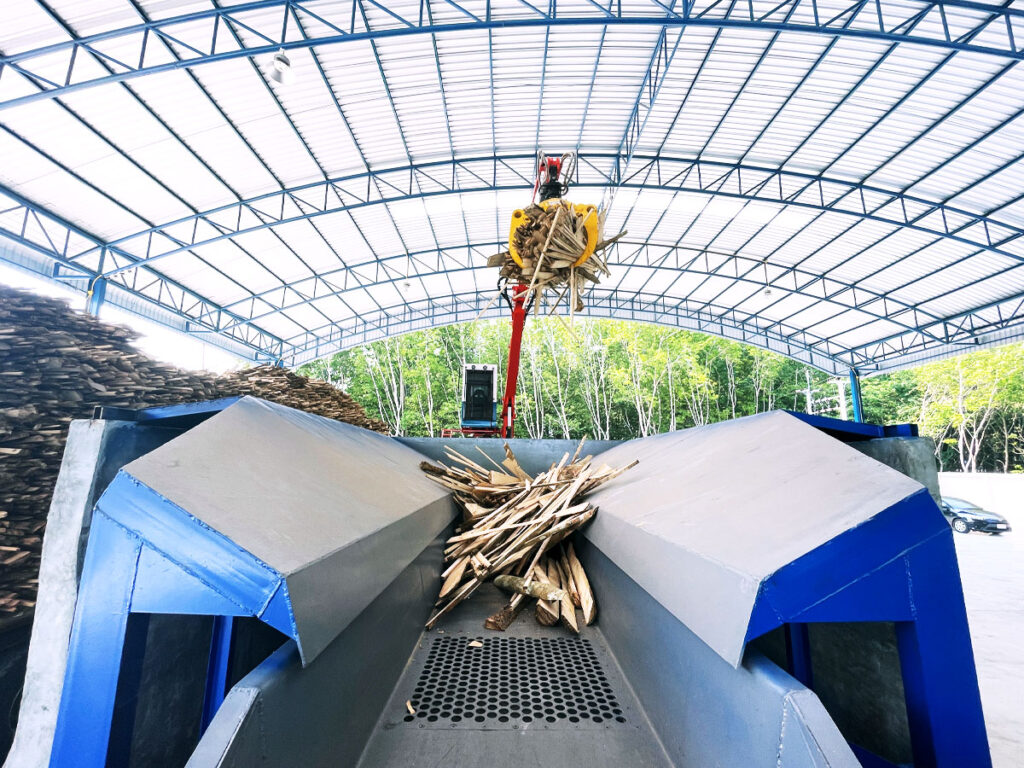

The standard for biomass power plants. This high-capacity wood chipper processes massive log volumes into uniform fuel chips with continuous feeding efficiency
Rice straw, Empty Fruit Bunches (EFB), coconut fronds, coconut shells, palm fronds, cassava roots, corn cobs, corn stalks, mixed wood, wood slabs, shredded roots, and general industrial wood waste.
Raw materials are transported via a conveyor belt system and fed into either the top or front hopper of the machine.
The machine efficiently chips the materials and discharges the processed output directly underneath.
A discharge conveyor then transports the chipped materials to the next processing stage.
Customizable Capacity: Production rates can be tailored to align perfectly with specific raw material types and target output volumes.
Adjustable Output Size: Chip dimensions can be strictly controlled—typically ranging from 5 mm to 50 mm—or customized to meet the exact standards of biomass power plants and pulp mills.
Tailored Design: Machine configurations can be adapted to specific operational demands, including enhanced safety measures, high-precision sizing, and specific industrial applications..
DRUM CHIPPER SERIES
DM800
Dim.: 2300 × 2080 × 1595 mm-
Ø8" Max Feed Size
-
180 HP (132 kW) Motor
-
6 Chipper Knives
DM1000
Dim.: 2265 ×2580 ×1600 mm.-
Ø10" Max Feed Size
-
270 HP (200 kW) Motor
-
6 Chipper Knives
DM1200
Dim.: 2325 ×2800 ×1715 mm.-
Ø12" Max Feed Size
-
340 HP (250 kW) Motor
-
8 Chipper Knives
DM1500
Dim.: 2550 ×3650 ×2290 mm.-
Ø15" Max Feed Size
-
430 HP (320 kW) Motor
-
10 Chipper Knives
DRUM CHIPPER LINE
A continuous high-capacity circuit. Starts with a Stationary Log Loader feeding the Vibration Conveyor, through the Drum Chipper. Includes Vibration Screens and Re-chippers to ensure 100% uniform size, linked by our automated Conveyor System.
1. STATIONARY LOG LOADER
STATIONARY LOG LOADER
High-performance hydraulic crane designed for precise log handling. Reduces manual labor and ensures continuous, heavy-duty feeding into the chipping line.
2. VIBRATION CONVEYOR
VIBRATION CONVEYOR
The essential feeding trough. It aligns logs and regulates the flow rate into the chipper, preventing jams and maximizing machine efficiency.
3. VIBRATION SCREEN
VIBRATION SCREEN
Precision quality control. Automatically separates accepted chips from sawdust and oversized wood, guaranteeing uniform output specifications.
4. DRUM RE-CHIPPER
DRUM RE-CHIPPER
Zero-waste efficiency. Specifically designed to re-process oversized chips rejected by the screen, maximizing your total material yield.
5. INDUSTRIAL CONVEYOR SYSTEM
INDUSTRIAL CONVEYOR SYSTEM
The artery of your production. Automated belt systems designed to transport raw materials and finished chips seamlessly from start to finish.
